6
Product Lines
≤NC-17
Noise Criterion
1,250 lbs
Load Strength
BACnet
MS/TP Ready
What is UFAD?
Underfloor Air Distribution (UFAD) is an advanced HVAC strategy that delivers conditioned air from a pressurised raised floor plenum directly into the occupied zone, at floor level, close to occupants.
Unlike conventional overhead systems, UFAD delivers cooler, cleaner air where people actually breathe. Hot, contaminated air naturally rises and is exhausted at ceiling level, resulting in superior air quality, dramatically lower energy consumption, and unmatched occupant comfort.
Floor Diffusers

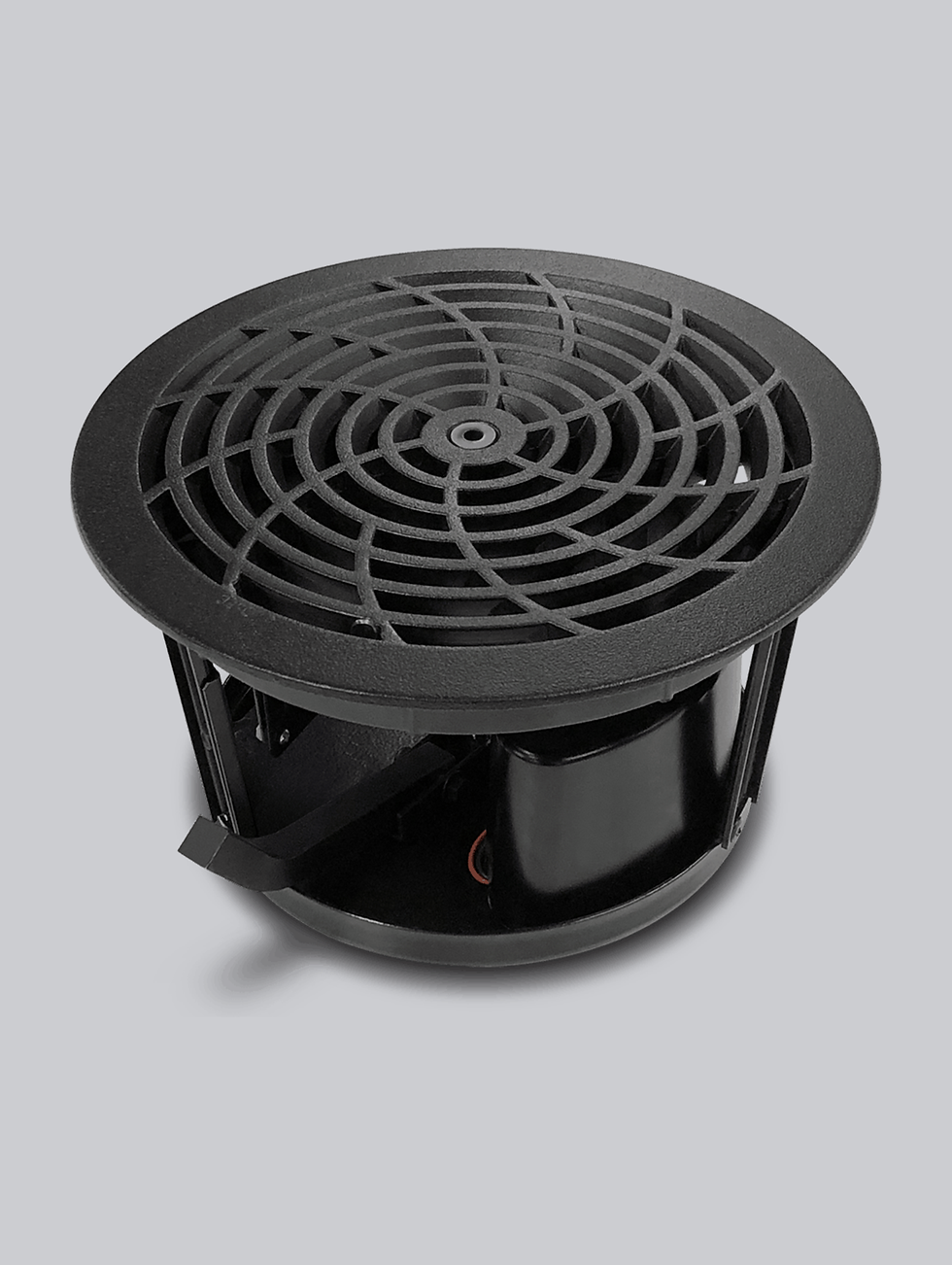

Wireless Diffusers
Perimeter Systems
Why UniAirFlow
Unitile - India's No.1 Raised Access Floor Brand
Unitile brings 30+ years of raised access floor engineering and installation expertise to every UniAirFlow project. Our specifications are issued with full co-ordination between the floor build-up and the air distribution layout, eliminating the retrofit conflicts that degrade performance on site.
Plug & play controls
Modular PAP cables enable fast zone installation. DC magnetic motors factory-programmed for multiple control strategies.
1,250 lb load strength
Cast aluminum grilles conform to NFPA 90a and are rated to 567 kg, as strong as the floor tile itself.
≤ NC-17 guaranteed
All Upflow terminals rated ≤ NC-17 across all flow conditions, critical for open-plan offices.
Architectural finishes
10 standard colors with custom RAL/paint options. Stainless steel (304/316) grilles for premium applications.
BACnet MS/TP ready
VT7200 controller integrates with all major BAS platforms. PI algorithm eliminates temperature offset.
